CB-140 Low Profile Furnace
In stock
SKU
CB-140
$0.00

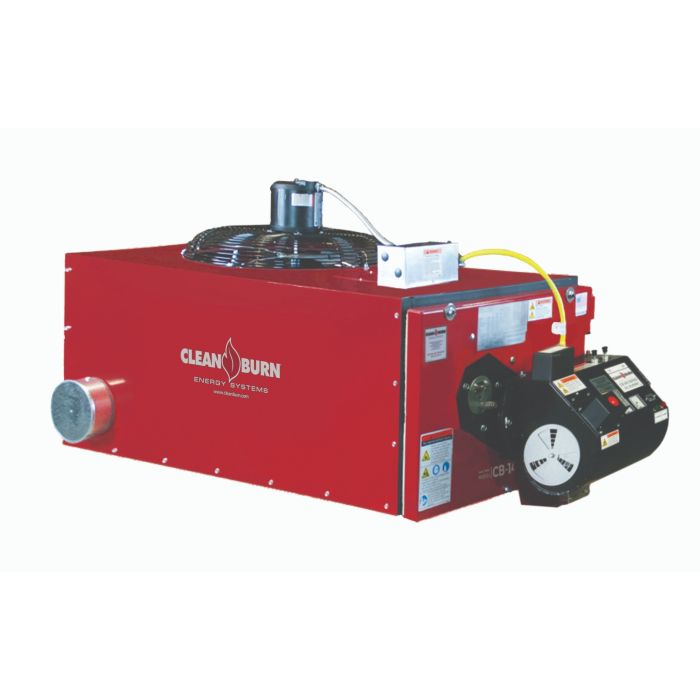

Clean Burn CB-140 Waste Oil Furnace
The Clean Burn CB-140 is the smallest and most economical Clean Burn used-oil furnace, offering an affordable heating solution without sacrificing performance or reliability. Producing approximately 140,000 BTU/hr, the CB-140 is ideal for small garages, repair shops, and workspaces looking to convert used oil into reliable heat while reducing heating costs and responsibly recycling waste oil. Its compact design and dependable operation make it an excellent choice for smaller applications.
Key Features
Engineered from the ground up to efficiently and safely burn a wide range of approved waste oils.
Patented heat exchanger is designed to generate more heat and maximize overall heating performance.
Unique, non-welded flue tube design provides extended service life and long-term durability.
Advanced burner system preheats oil to optimize combustion for cleaner, more efficient operation.
Swing-away burner and access door provide quick, convenient access for routine service and cleaning.
Longest cleaning interval in its class helps minimize downtime and reduce maintenance requirements.
Lower stack temperatures and higher heat output deliver improved heating performance and efficiency.
Automatic flow control eliminates the need for fuel adjustments during operation.
Compact and versatile design provides an economical heating solution for small garages, shops, and workspaces.
Versatile design allows installation as a unit heater or use with a Clean Burn Recycling Center.
Backed by unequaled service and support from Clean Burn Distributors providing expert furnace selection, installation, service, and ongoing support.
Details
Specifications
Heating Capacity
Maximum Output: 140,000 BTU/hr (41 kW)
Fuel Consumption
Maximum Oil Usage:
1.0 GPH (3.8 L/hr)
Compatible Fuels
Used Crankcase Oil
Automatic Transmission Fluid (ATF)
Hydraulic Oil
#2 Fuel Oil
#4 Fuel Oil
#5 Fuel Oil
Airflow
Unit Heater Configuration
2,000 CFM
Axial fan
Furnace cannot be ducted
Air Compressor Requirements
Minimum 2.5 CFM @ 25 PSI
(4.25 m³/hr @ 2 bar)
Exhaust Vent
6-inch (15 cm) diameter flue
Overall Dimensions
61" L × 32" W × 32" H
(155 cm × 81 cm × 81 cm)
Approximate Weight
220 lbs (99.8 kg)
Electrical Requirements
115 VAC
60 Hz
Single Phase
30-amp dedicated circuit
More Information
| Manufacturer | Clean Burn |
|---|---|
| BTU/hour | 140,000 |
| Unit Type | Furnace |
| Avg. Fuel Consumption / Hour | 1.0 |
| Fuels | Used Oils, Crankcase, ATF, Hydraulic, Fuel Oils, #2, #4 and #5 |
| Stack Size | 6-Inch |
| Unit Weight (Lbs) | 300 |
| Unit Dimensions | 45" L X 28"W X 20"T |
| Electrical Requirement | 115 VAC 60HZ, single phase, 20A Circuit |
